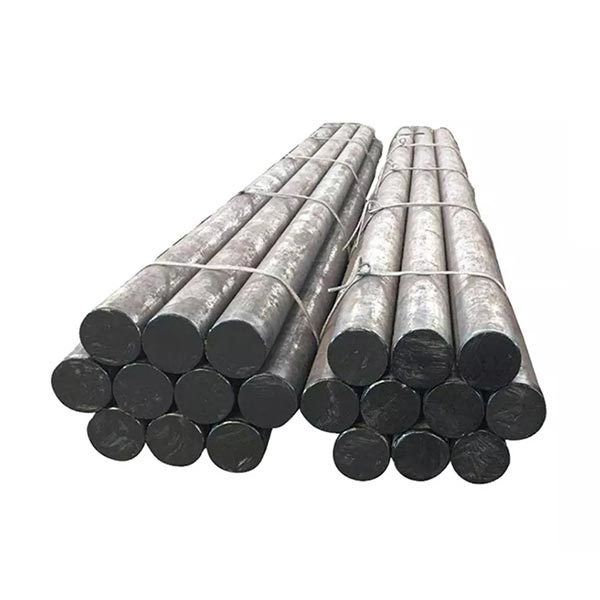

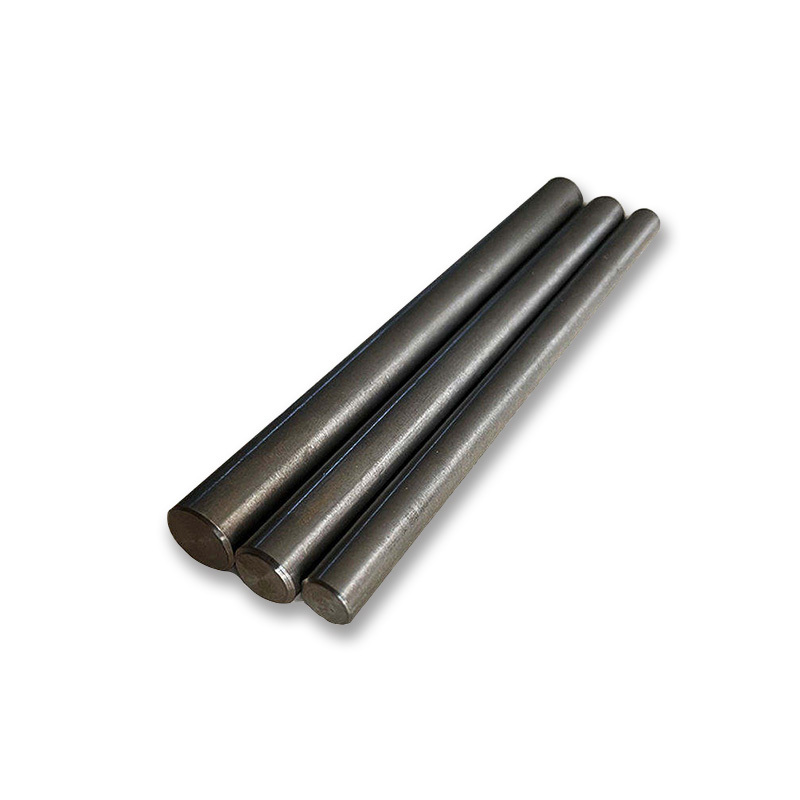

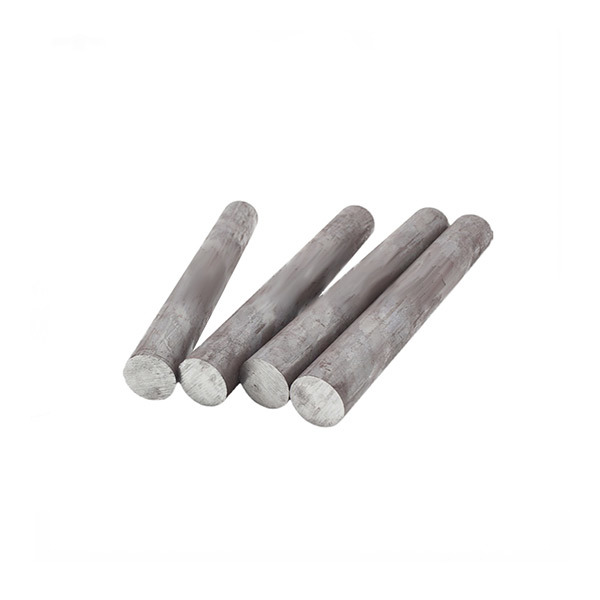

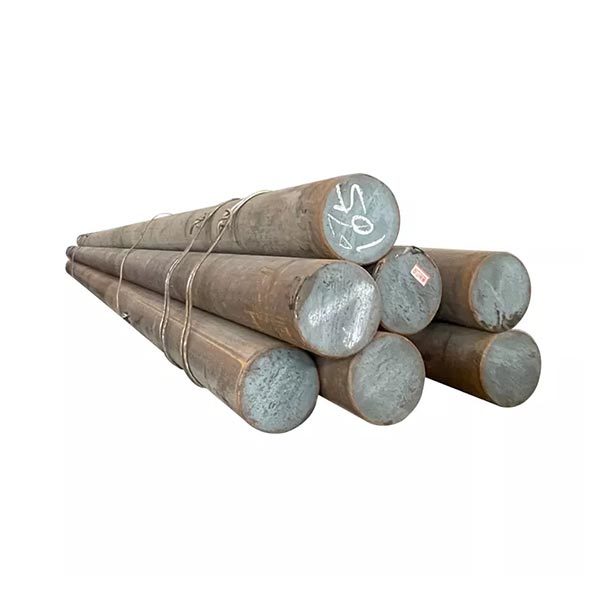

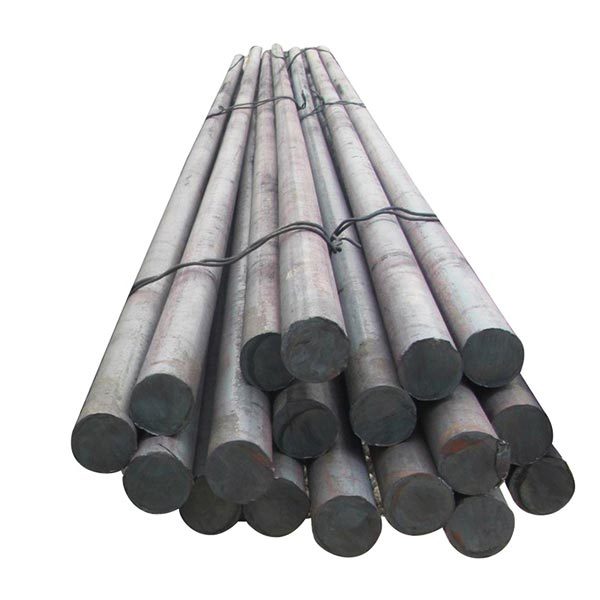

A36 Carbon Steel Bar

A36 is a low-carbon steel containing trace amounts of manganese, phosphorus, sulfur, silicon and other elements such as copper. A36 has good weldability and high yield strength, and is the most specified structural steel plate by engineers. ASTM A36 is most commonly manufactured as a variety of structural steel parts. This grade is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its lowest yield point, A36 can be used to design lighter-weight structures and equipment, and provide good weldability.

Classification :

Carbon Steel Bar

WhatsApp : ‪+8613361069300‬

E-mail : inquiry@ssgsteel.com

PRODUCT DETAILS

A36 Carbon Steel Bar Description

Product Parameters

Product Name	A36 Carbon Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

C	Cu	Fe	Mn	P	Si	S
0.25～0.290	0.20	98.0	1.03	0.040	0.280	0.050

Mechanical Properties

A36	Limit Tensile Strength	Tensile Strength, Yield Strength	Elongation at Break(Unit: 200mm)	Elongation at Break(Unit: 50mm)	Modulus of Elasticity	Bulk Modulus(Typical for Steel)	Poisson's Ratio	Shear Modulus
Metric	400～550MPa	250MPa	20.0%	23.0%	200GPa	140GPa	0.260	79.3GPa
Imperial	58000～79800psi	36300psi	20.0%	23.0%	29000ksi	20300ksi	0.260	11500ksi

Physical Performance

Physical Performance	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in3

Scope of Application

Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.

Equivalent Material

National Standard GB	European Standard EN	American Standard ASTM	German Standard DIN,WNr	Japanese Standard JIS	French Standard AFNOR	British Standard BS	Canada HG
Q235B	S235JR	A283C	St37-2	SM400A	E24-2	40A/40B	230G
Italy UNI	India IS	Switzerland SS	Australia ONORM	Norway NS	Spain UNE	International Standards ISO	Portugal NP
Fe360B	IS2062	1311/1312	RSt360B	NS12123	AE235B-FN	E235B/Fe360B	FE360-B

Factory appearance

USA	Japan	Germany		U.K.		France	Italy	Spain	Switzerland	China
AISI/SAE	JIS	W‐nr.	DIN	BS	EN	AFNOR	UNI	UNE	SS	GB
A570.36	STKM 12A	1.0038	RSt.37‐2	4360	‐	E 24‐2	‐	‐	1311	15
-	STKM 12C	-	-	40 C	-	Ne	-	-	-	-
1015	‐	1.0401	C15	080M15	‐	CC12	C15, C16	F.111	1350	15
1020	‐	1.0402	C22	050A20	2C	CC20	C20, C21	F.112	1450	20
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	F.2111	1912	Y15
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	11SMn28	1912	Y15
12L13	SUM22L	1.0718	9SMnPb28	‐	‐	S250Pb	CF9SMnPb28	11SMnPb28	1914	‐
‐	‐	1.0722	10SPb20	‐	‐	10PbF2	CF10Pb20	10SPb20	‐	‐
1215	‐	1.0736	9SMn36	240M07	1B	S300	CF9SMn36	12SMn35	‐	Y13
12L14	‐	1.0737	9SMnPb36	‐	‐	S300PB	CF9SMnPb36	12SMnP35	1926	‐
1015	S15C	1.1141	Ck15	080M15	32C	XC12	C16	C15K	1370	15
1025	S25C	1.1158	Ck25	‐	‐	‐	‐	‐	‐	25
A572-60	‐	1.890	StE380	4360 55	‐	‐	FeE390KG	‐	2145	‐
1035	‐	1.0501	C35	060A35	‐	CC35	C35	F.113	1550	35
1045	‐	1.0503	C45	080M46	‐	CC45	C45	F.114	1650	45
1140	‐	1.0726	35S20	212M36	8M	35MF4	‐	F210G	1957	‐
1039	‐	1.1157	40Mn4	150M36	15	35M5	‐	‐	‐	40Mn
1335	SMn438(H)	1.1167	36Mn5	‐	‐	40M5	‐	36Mn5	2120	35Mn2
1330	SCMn1	1.1170	28Mn6	150M28	14A	20M5	C28Mn	‐	‐	30Mn
1035	S35C	1.1183	Cf35	060A35	‐	XC38TS	C36	‐	1572	35Mn
1045	S45C	1.1191	Ck45	080M46	‐	XC42	C45	C45K	1672	Ck45
1050	S50C	1.1213	Cf53	060A52	‐	XC48TS	C53	‐	1674	50
1055	‐	1.0535	C55	070M55	9	‐	C55	‐	1655	55
1060	‐	1.0601	C60	080A62	43D	CC55	C60	‐	‐	60
1055	S55C	1.1203	Ck55	070M55	‐	XC55	C50	C55K	‐	55
1060	S58C	1.1221	Ck60	080A62	43D	XC60	C60	‐	1678	60Mn
1095	‐	1.1274	Ck101	060A96	‐	XC100	‐	F.5117	1870	‐
W1	SK3	1.1545	C105W1	BW1A	‐	Y105	C36KU	F.5118	1880	‐
W210	SUP4	1.1545	C105W1	BW2	‐	Y120	C120KU	F.515	2900	‐

Packing and delivery

We can provide,wooden pallet packaging,Wooden packing,Steel strapping packaging,Plastic packaging and other packaging methods.We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation

QUALITY INSPECTION

Our factory is equipped with advanced professional production facilities and mature technologies, and has a high-quality professional management and technical talent team. Currently, it holds multiple international standard certifications such as ISO, SGS, API, CE, ABS, etc., ranking among the leading levels in China!

FACTORY WORKSHOP

CERTIFICATES

VERIFICATION OF CONFORMITY

POWER OF ATTORNEY

QUALITY MANAGEMENT SYSTEM CERTIFICATION

CERTIFICATE OF QUALITY MANAGEMENT SYSTEM

ANNEXL

ATTESTATION

POWER OF ATTORNEY

OFAPPRECIATION

PARTNERS

APPLICATION FIELD

Bridge

Oil pipeline

Chemical industry

Steel structure

FAQ

Q:Does the product have quality inspection before loading?

A: Of course, all our products are strictly quality tested before packing, unqualified products will be destroyed, customers can appoint a third party to inspect the products before loading as well.

Q:Can l go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory

Q:How many countries you already exported to?

A: We have exported to the United States, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, Somalia and other African countries. We have rich export experience, we are familiar with different market demands and can help customers avoid a lot of trouble.

Q:How long does your delivery time take?

A: Generally speaking, our delivery time is within 7-15 days, if the quantity is very large or special circumstances occur, it may be longer.

Q:lt's my first time to import steel products, can you help me with it?

A: Of course, we have agent to arrange the shipment and we will do it with you.

Q:What product information do l need to provide?

A: Please provide the grade, width, thickness, surface treatment requirements (if you have any) and the quantity you need to purchase.
